parity · typography

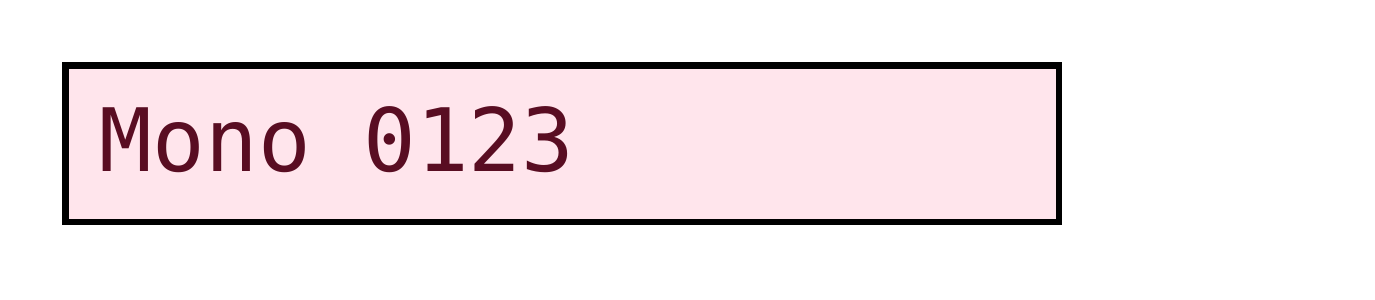

PASS exact match typography-font-family-monospace · monospace

Generic monospace family fallback at 28px with fixed-advance glyphs.

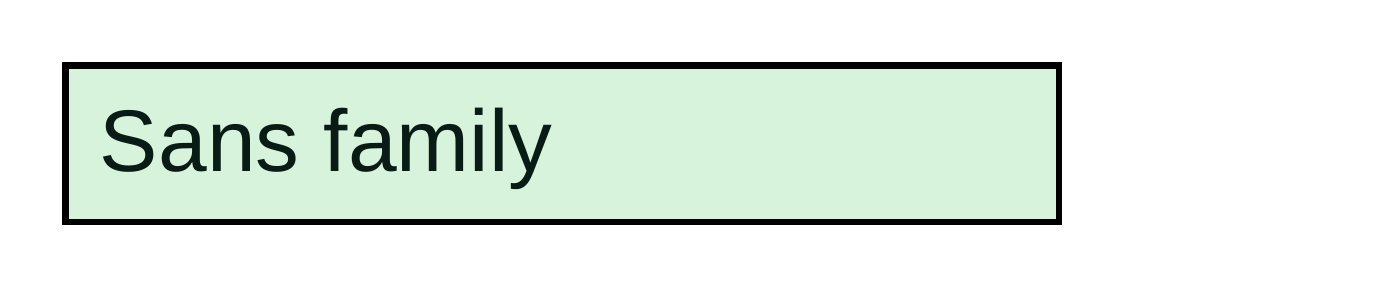

PASS exact match typography-font-family-sans-serif · sans-serif

Generic sans-serif family fallback at 28px.

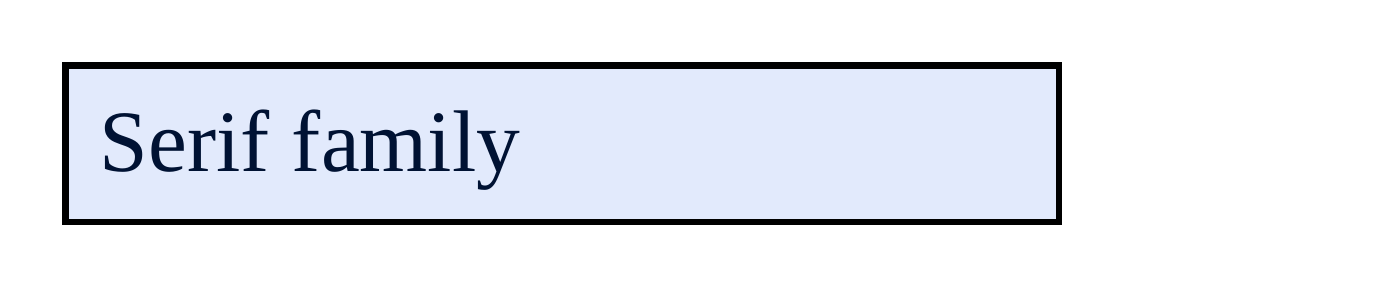

PASS exact match typography-font-family-serif · serif

Generic serif family fallback at 28px.

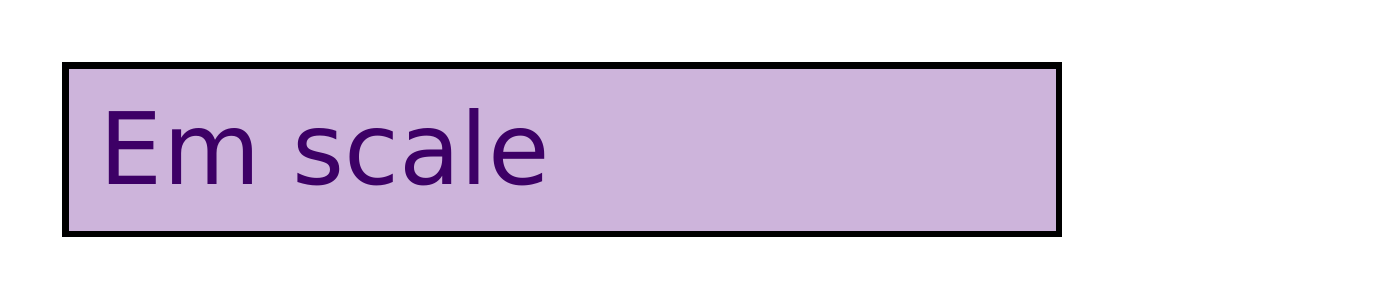

PASS exact match typography-font-size-em · em

font-size 2em resolved against the parent's 16px font-size.

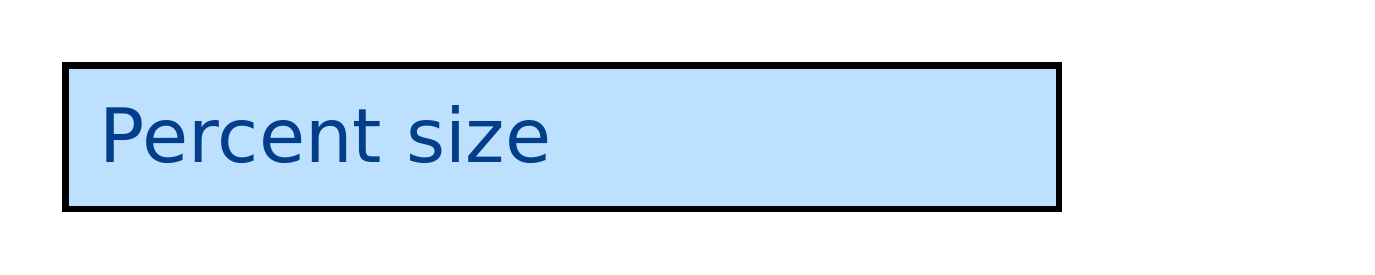

PASS exact match typography-font-size-percent · percent

font-size 150% resolved against the parent's 16px font-size.

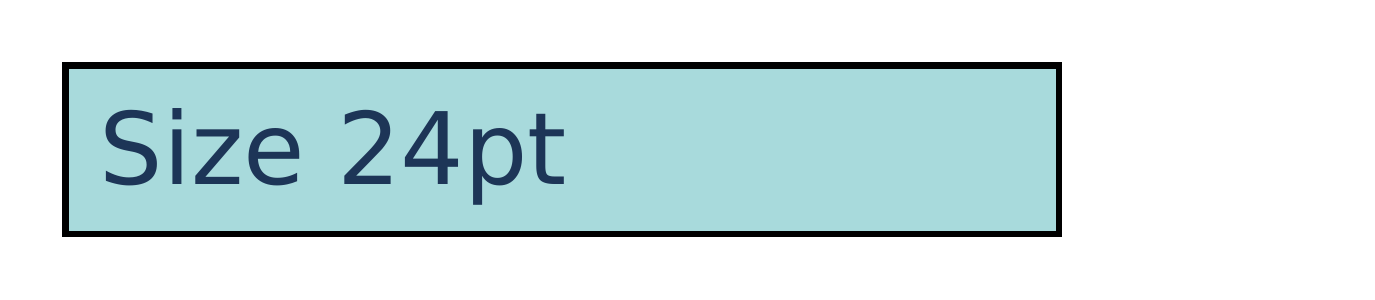

PASS exact match typography-font-size-pt · pt

Text rendered at an explicit 24pt font-size to verify pt-to-px conversion.

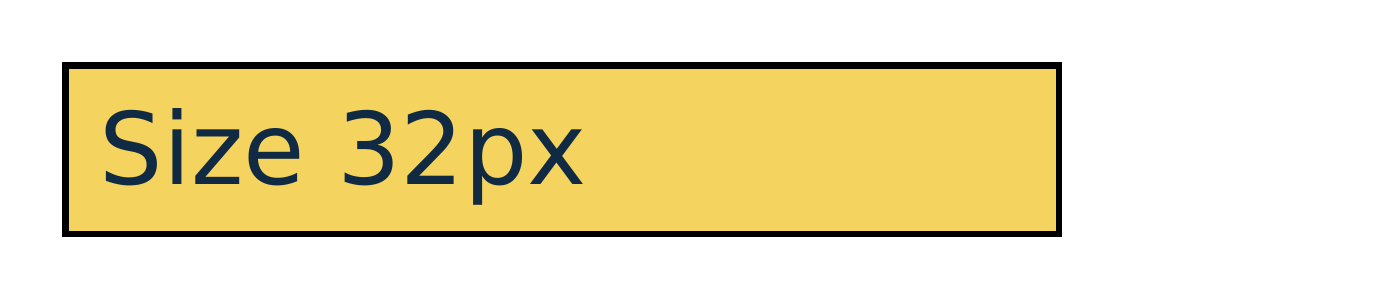

PASS exact match typography-font-size-px · px

Text rendered at an explicit 32px font-size in a bordered, filled region.

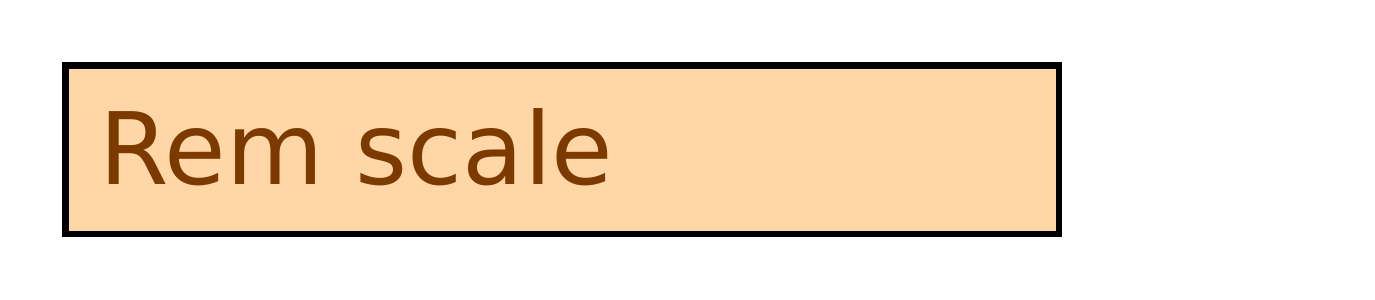

PASS exact match typography-font-size-rem · rem

font-size 2rem resolved against the root 16px font-size, not the local 10px.

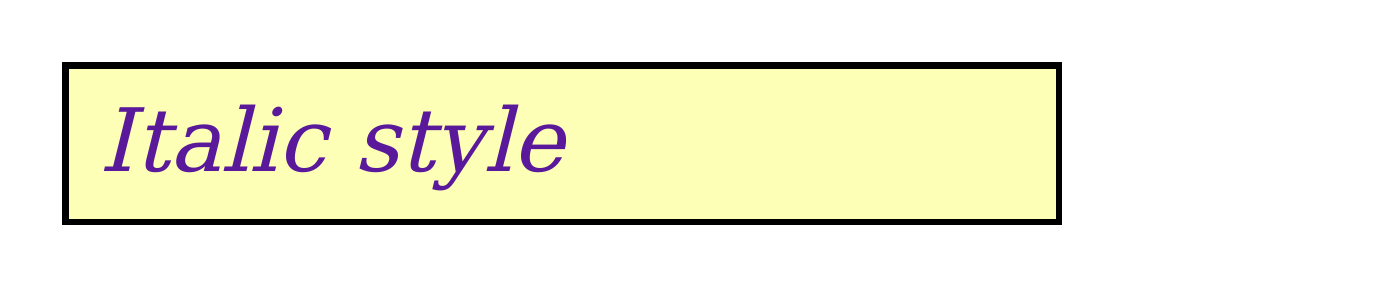

PASS exact match typography-font-style-italic · italic

Italic serif text with only a regular bundled face available, verifying synthetic slant and its metrics.

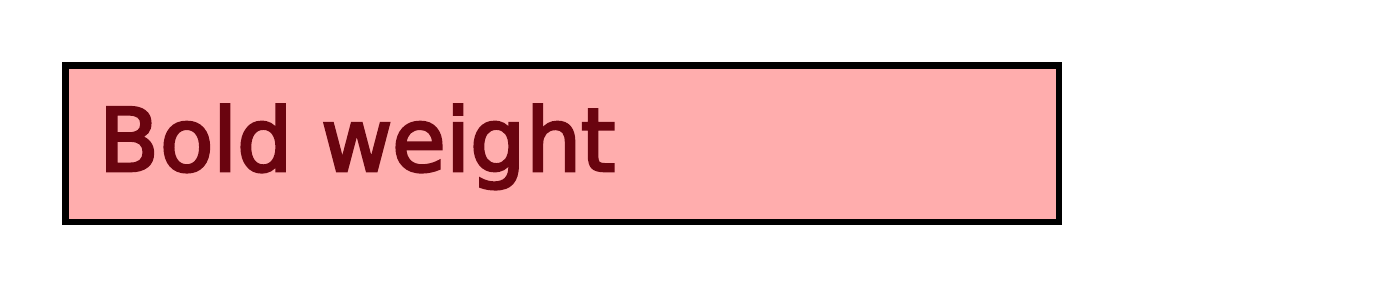

PASS exact match typography-font-weight-bold · bold

Bold-weight text so heavier glyph strokes show up as pixel differences.

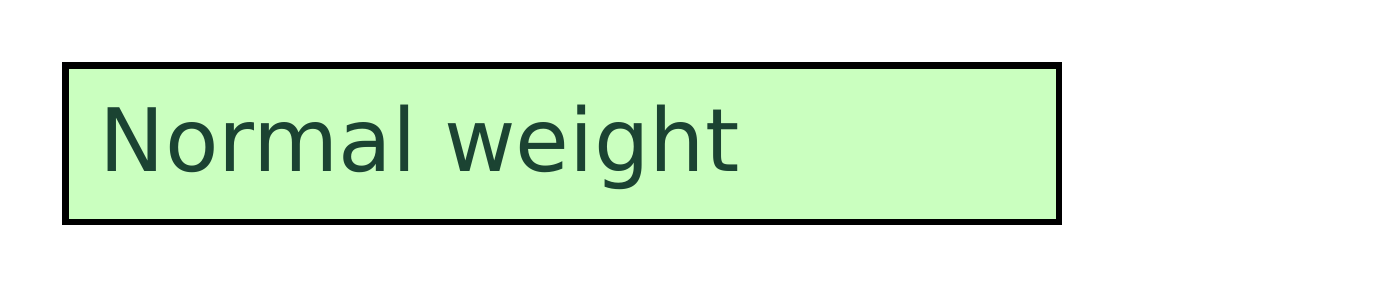

PASS exact match typography-font-weight-normal · normal

Normal-weight text as the regular-stroke counterpart to the bold fixture.

PASS visually equivalent · no rejecting defect · thresholded evidence 0.006141% · raw 0.006141% (38 px) typography-heading-default-sizes · h1-h3PASS via CSS-scale observation: sub-CSS shared-colour coverageAntialiasCoverageΔE 6.3

why: visually accepted coverage phase; raw antialiasing coverage residue on a shared outline

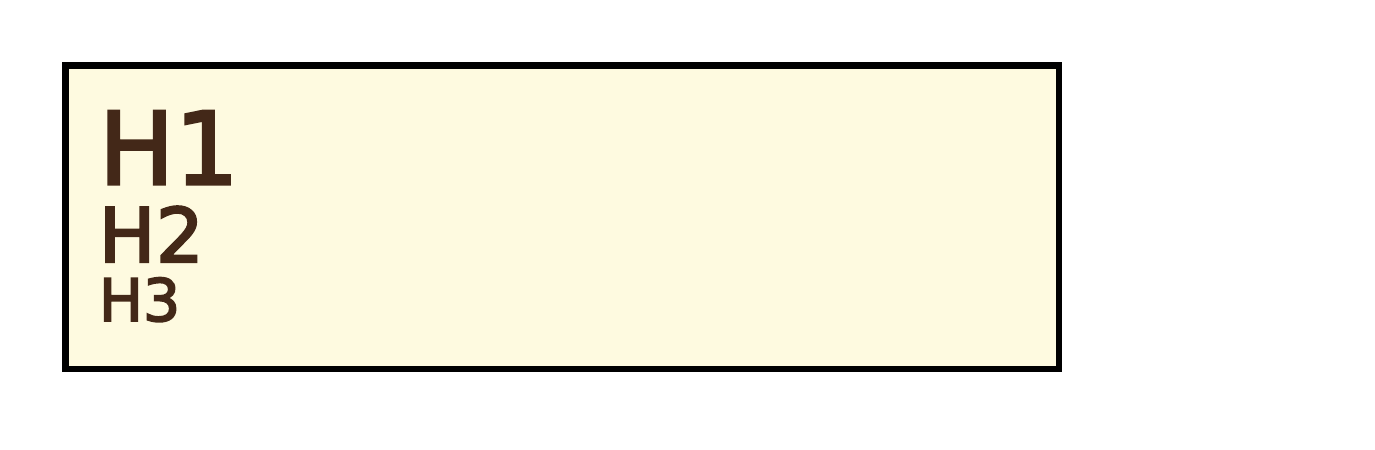

The authenticated parity baseline's explicit h1, h2 and h3 font sizes are stacked in one region.

regions (27 total; showing 27 representatives)

Complete component census grouped by dominant raster class; representative details are bounded.

Complete dominant-class aggregates

class	regions	pixels	union bbox (CSS px)	largest px	maximum magnitude
ColorErr	27	38	28,68 → 36,83	7	total 0.01% · largest 0.002258%

Representative region details (worst-first)

class	bbox (CSS px)	area%	magnitude	reason
AntialiasCoverage	29,76 → 31,76	0.002258	ΔRGB(56,62,60)	antialiasing coverage residue on a shared outline
AntialiasCoverage	34,79 → 34,79	0.000968	ΔRGB(11,14,12)	antialiasing coverage residue on a shared outline
AntialiasCoverage	34,69 → 34,69	0.000645	ΔRGB(-11,-14,-12)	antialiasing coverage residue on a shared outline
AntialiasCoverage	36,71 → 36,71	0.000645	ΔRGB(-16,-19,-17)	antialiasing coverage residue on a shared outline
AntialiasCoverage	36,71 → 36,72	0.000645	ΔRGB(-7,-8,-8)	antialiasing coverage residue on a shared outline
AntialiasCoverage	30,68 → 30,68	0.000323	ΔRGB(-3,-4,-4)	antialiasing coverage residue on a shared outline
AntialiasCoverage	31,68 → 31,68	0.000323	ΔRGB(-22,-23,-23)	antialiasing coverage residue on a shared outline
AntialiasCoverage	32,68 → 32,68	0.000323	ΔRGB(-11,-12,-12)	antialiasing coverage residue on a shared outline
AntialiasCoverage	29,69 → 29,69	0.000323	ΔRGB(-17,-19,-18)	antialiasing coverage residue on a shared outline
AntialiasCoverage	35,70 → 35,70	0.000323	ΔRGB(-6,-6,-5)	antialiasing coverage residue on a shared outline
AntialiasCoverage	30,71 → 30,71	0.000323	ΔRGB(16,17,16)	antialiasing coverage residue on a shared outline
AntialiasCoverage	31,71 → 31,71	0.000323	ΔRGB(14,16,15)	antialiasing coverage residue on a shared outline
AntialiasCoverage	31,71 → 31,71	0.000323	ΔRGB(14,14,14)	antialiasing coverage residue on a shared outline
AntialiasCoverage	32,71 → 32,71	0.000323	ΔRGB(17,19,18)	antialiasing coverage residue on a shared outline
AntialiasCoverage	28,71 → 28,71	0.000323	ΔRGB(16,19,17)	antialiasing coverage residue on a shared outline
AntialiasCoverage	29,71 → 29,71	0.000323	ΔRGB(6,6,5)	antialiasing coverage residue on a shared outline
AntialiasCoverage	33,71 → 33,71	0.000323	ΔRGB(16,18,18)	antialiasing coverage residue on a shared outline
AntialiasCoverage	36,73 → 36,73	0.000323	ΔRGB(-7,-8,-8)	antialiasing coverage residue on a shared outline
AntialiasCoverage	36,76 → 36,76	0.000323	ΔRGB(-9,-11,-10)	antialiasing coverage residue on a shared outline
AntialiasCoverage	36,77 → 36,77	0.000323	ΔRGB(-11,-14,-12)	antialiasing coverage residue on a shared outline
AntialiasCoverage	34,78 → 34,78	0.000323	ΔRGB(6,6,5)	antialiasing coverage residue on a shared outline
AntialiasCoverage	36,78 → 36,78	0.000323	ΔRGB(-6,-6,-5)	antialiasing coverage residue on a shared outline
AntialiasCoverage	36,79 → 36,79	0.000323	ΔRGB(-11,-14,-12)	antialiasing coverage residue on a shared outline
AntialiasCoverage	36,80 → 36,80	0.000323	ΔRGB(-6,-6,-5)	antialiasing coverage residue on a shared outline
AntialiasCoverage	29,81 → 29,81	0.000323	ΔRGB(-3,-4,-4)	antialiasing coverage residue on a shared outline
AntialiasCoverage	35,82 → 35,82	0.000323	ΔRGB(-11,-14,-12)	antialiasing coverage residue on a shared outline
AntialiasCoverage	34,83 → 34,83	0.000323	ΔRGB(-14,-14,-14)	antialiasing coverage residue on a shared outline

source · cases/typography/typography-heading-default-sizes.html

1<!DOCTYPE html>
2<html lang="en">
3<head>
4<meta charset="utf-8">
5<title>heading default sizes</title>
6<style>
7  @page { size: 440px 144px; margin: 0; }
8  html { font-family: ParitySans; line-height: 1.5; }
9  * { margin: 0; box-sizing: border-box; }
10  html, body { background: #ffffff; }
11  .region {
12    width: 320px;
13    margin: 20px;
14    padding: 10px;
15    border: 2px solid #000000;
16    background: #fefae0;
17    font-family: ParitySans;
18    color: #432818;
19  }
20  h1, h2, h3 { line-height: 1; }
21</style>
22</head>
23<body>
24  <div class="region">
25    <h1>H1</h1>
26    <h2>H2</h2>
27    <h3>H3</h3>
28  </div>
29</body>
30</html>

PASS visually equivalent · no rejecting defect · thresholded evidence 0.18% · raw 0.18% (901 px) typography-initial-letter-two-line · initial-letter-two-linePASS via CSS-scale observation: sub-CSS shared-colour coverageAntialiasCoverageΔE 24.7

why: visually accepted coverage phase; raw antialiasing coverage residue on a shared outline

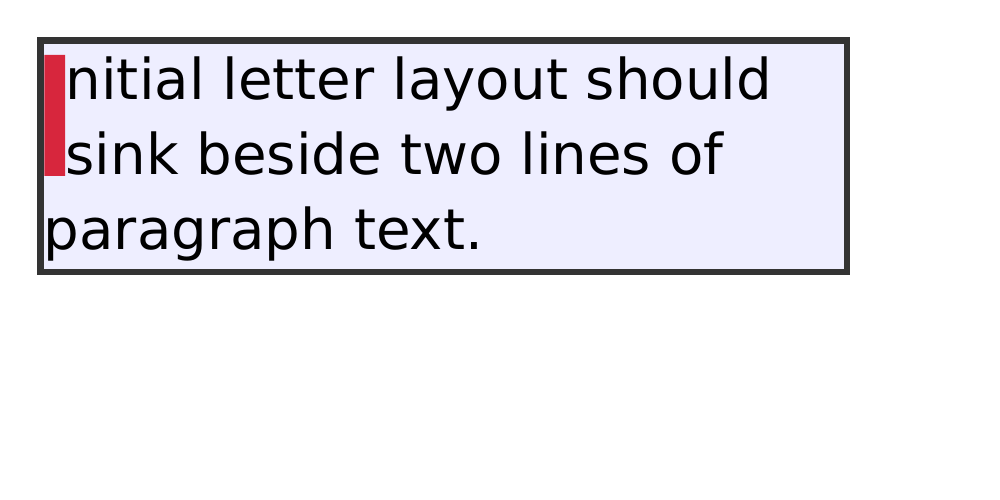

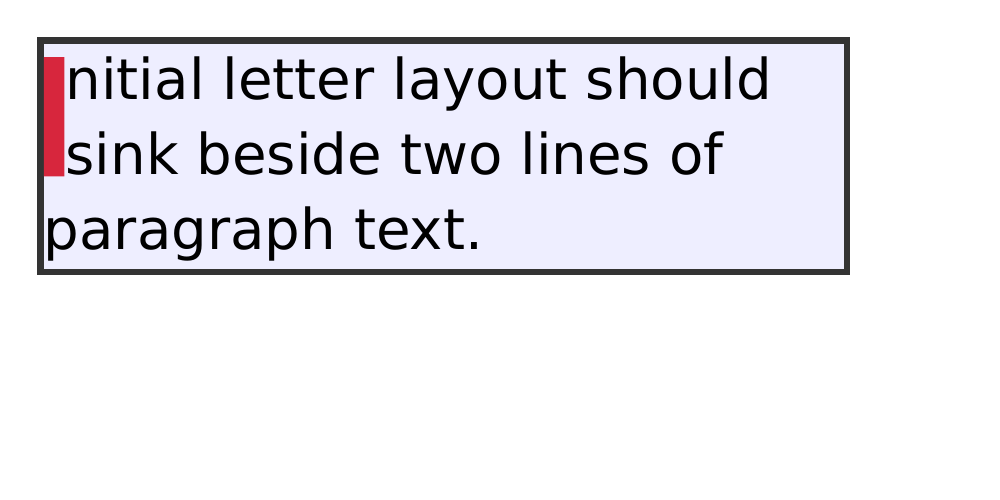

A paragraph uses p::first-letter{initial-letter:2} to create a dropped initial spanning two lines without manual float sizing. Catches: A renderer with only custom ::first-letter font-size/float drop caps passes handcrafted drop-cap fixtures but ignores the initial-letter property.

regions (12 total; showing 12 representatives)

Complete component census grouped by dominant raster class; representative details are bounded.

Complete dominant-class aggregates

class	regions	pixels	union bbox (CSS px)	largest px	maximum magnitude
ColorErr	12	901	2,5 → 169,44	564	total 0.5% · largest 0.3%

Representative region details (worst-first)

class	bbox (CSS px)	area%	magnitude	reason
AntialiasCoverage	2,5 → 9,44	0.3	ΔRGB(-3,-26,-25)	antialiasing coverage residue on a shared outline
AntialiasCoverage	164,11 → 168,20	0.03	ΔRGB(70,70,76)	antialiasing coverage residue on a shared outline
AntialiasCoverage	34,10 → 34,20	0.03	ΔRGB(126,126,134)	antialiasing coverage residue on a shared outline
AntialiasCoverage	36,10 → 36,20	0.03	ΔRGB(-86,-86,-92)	antialiasing coverage residue on a shared outline
AntialiasCoverage	166,11 → 168,18	0.03	ΔRGB(-76,-76,-81)	antialiasing coverage residue on a shared outline
AntialiasCoverage	164,7 → 164,10	0.01	ΔRGB(51,51,55)	antialiasing coverage residue on a shared outline
AntialiasCoverage	166,7 → 166,10	0.01	ΔRGB(-71,-71,-76)	antialiasing coverage residue on a shared outline
AntialiasCoverage	34,6 → 34,8	0.007235	ΔRGB(111,111,118)	antialiasing coverage residue on a shared outline
AntialiasCoverage	36,6 → 36,8	0.007235	ΔRGB(-86,-86,-92)	antialiasing coverage residue on a shared outline
AntialiasCoverage	163,10 → 163,11	0.005168	ΔRGB(118,118,127)	antialiasing coverage residue on a shared outline
AntialiasCoverage	169,10 → 169,11	0.005168	ΔRGB(-66,-66,-71)	antialiasing coverage residue on a shared outline
AntialiasCoverage	169,18 → 169,20	0.005168	ΔRGB(-66,-66,-71)	antialiasing coverage residue on a shared outline

source · cases/typography/typography-initial-letter-two-line.html

1<!DOCTYPE html><html><head><meta charset='utf-8'><style>@page{size:320px 160px;margin:0}html{font-family:ParitySans;line-height:1.5}*{margin:0;box-sizing:border-box}body{padding:12px;background:#fff}p{width:260px;font-size:18px;line-height:24px;background:#eef;border:2px solid #333}p::first-letter{initial-letter:2;color:#d7263d;font-weight:bold}</style></head><body><p>Initial letter layout should sink beside two lines of paragraph text.</p></body></html>

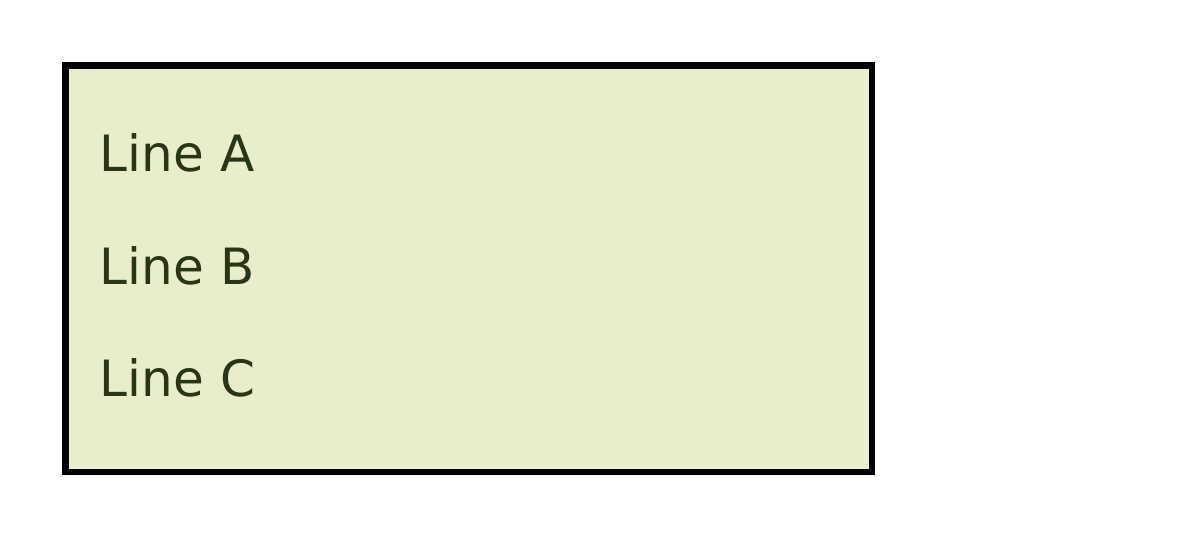

PASS exact match typography-line-height-length · length

Length line-height 36px across three stacked lines to verify fixed line-box height.

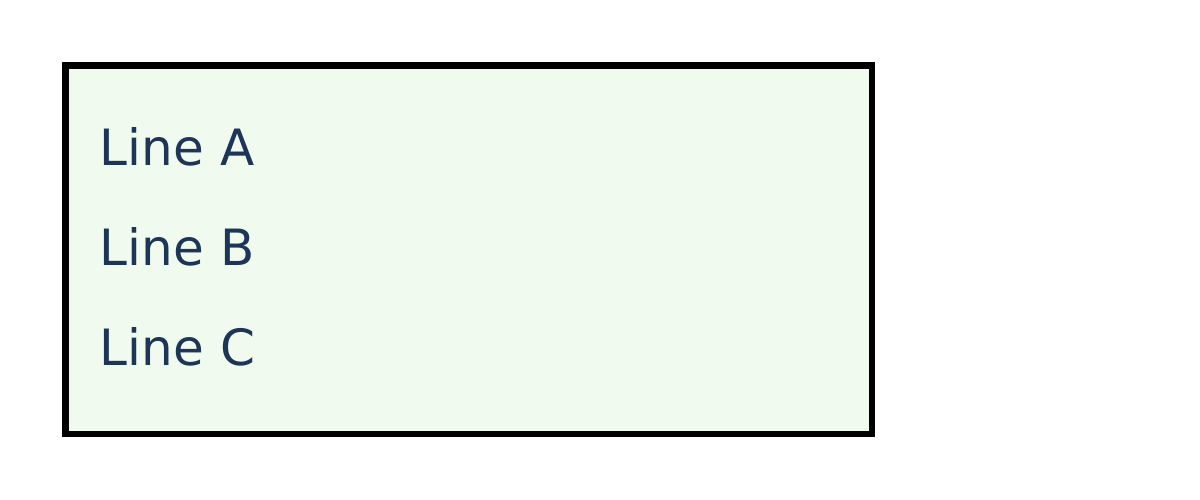

PASS exact match typography-line-height-numeric · numeric

Unitless line-height 2 across three stacked lines to verify line-box spacing.

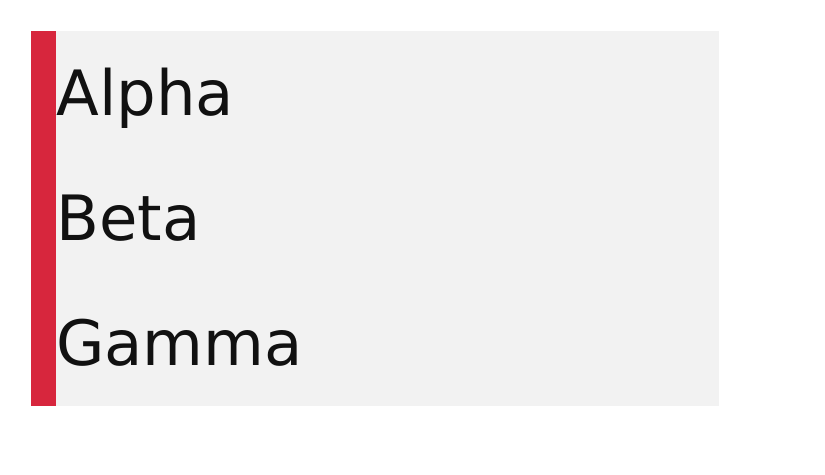

PASS exact match typography-line-height-percent · percentage-font-size

line-height:200% resolves from the element font-size to 40px line boxes; catches percentage line-height being ignored or inherited as 1.5.

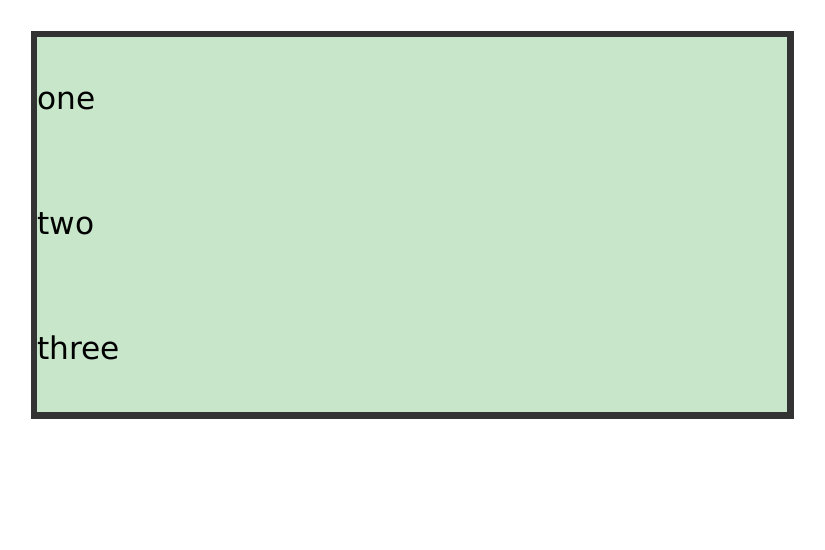

PASS exact match typography-line-height-em-inheritance · line-height-em-inheritance

A parent sets font-size:20px and line-height:2em; a smaller child inherits a 40px computed line-height, not a unitless factor of 2. Catches: Treating line-height:2em as the number 2 passes simple same-element line-height tests but compresses descendants with smaller fonts.

PASS visually equivalent · no rejecting defect · thresholded evidence 0.06% · raw 0.06% (288 px) typography-mixed-inline-font-size-linebox · mixed-inline-font-size-lineboxPASS via CSS-scale observation: one-sided sub-CSS outline coverageAntialiasCoverageextra 0.04%ΔE 17.1

why: visually accepted coverage phase; raw antialiasing coverage residue on a shared outline

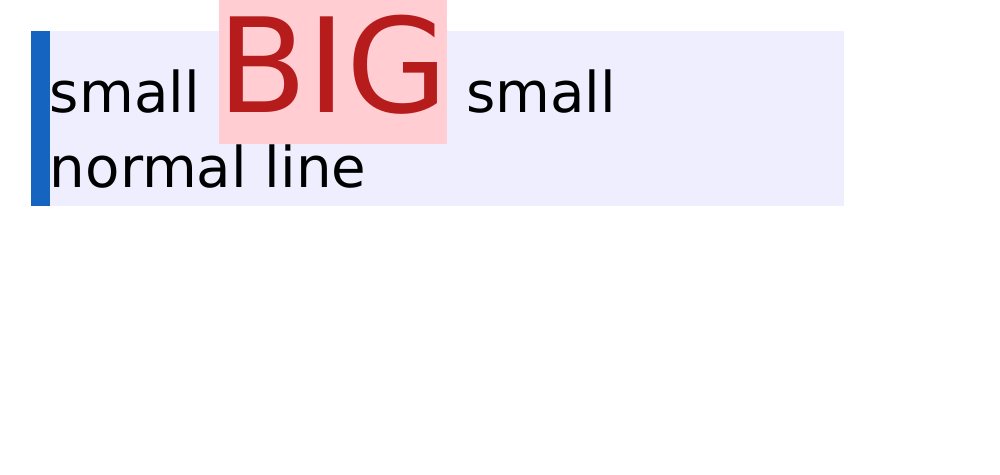

A paragraph with a 42px span in the middle must produce a taller first line than the following normal line. Catches: A block-level line-height-only engine passes uniform line-height tests while clipping or overlapping large inline runs.

regions (4 total; showing 4 representatives)

Complete component census grouped by dominant raster class; representative details are bounded.

Complete dominant-class aggregates

class	regions	pixels	union bbox (CSS px)	largest px	maximum magnitude
Extra	2	62	60,0 → 133,10	31	total 0.04% · largest 0.02%
ColorErr	2	226	60,10 → 133,46	113	total 0.1% · largest 0.07%

Representative region details (worst-first)

class	bbox (CSS px)	area%	magnitude	reason
AntialiasCoverage	60,10 → 60,46	0.07	ΔRGB(17,-33,-45)	antialiasing coverage residue on a shared outline
AntialiasCoverage	133,10 → 133,46	0.07	ΔRGB(17,-33,-45)	antialiasing coverage residue on a shared outline
Extra	60,0 → 60,10	0.02		candidate adds paint absent from reference (0.02%)
Extra	133,0 → 133,10	0.02		candidate adds paint absent from reference (0.02%)

source · cases/typography/typography-mixed-inline-font-size-linebox.html

1<!DOCTYPE html><html><head><meta charset='utf-8'><style>@page{size:320px 152px;margin:0}html{font-family:ParitySans;line-height:1.5}*{margin:0;box-sizing:border-box}body{padding:10px;background:#fff}p{width:260px;font-size:18px;line-height:24px;background:#eef;border-left:6px solid #1565c0}.big{font-size:42px;background:#ffcdd2;color:#b71c1c}</style></head><body><p>small <span class='big'>BIG</span> small<br>normal line</p></body></html>

PASS visually equivalent · no rejecting defect · thresholded evidence 0.11% · raw 0.11% (330 px) typography-text-emphasis-filled-dot · text-emphasis-filled-dotPASS via CSS-scale observation: one-sided sub-CSS outline coverageAntialiasCoveragemissing 0.7%ΔE 18.9

why: visually accepted coverage phase; raw antialiasing coverage residue on a shared outline

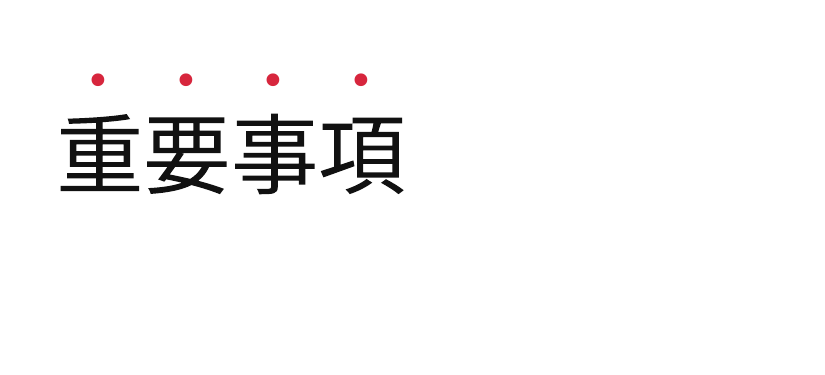

Japanese text uses filled red emphasis dots above the characters. Catches: An implementation with only text-decoration lines passes underline/overline tests but renders no emphasis marks.

regions (18 total; showing 18 representatives)

Complete component census grouped by dominant raster class; representative details are bounded.

Complete dominant-class aggregates

class	regions	pixels	union bbox (CSS px)	largest px	maximum magnitude
ColorErr	15	242	2,13 → 106,37	35	total 0.6% · largest 0.08%
Missing	3	88	2,27 → 106,32	31	total 0.2% · largest 0.07%

Representative region details (worst-first)

class	bbox (CSS px)	area%	magnitude	reason
AntialiasCoverage	56,15 → 67,15	0.08	ΔRGB(71,71,71)	antialiasing coverage residue on a shared outline
AntialiasCoverage	70,15 → 81,15	0.08	ΔRGB(71,71,71)	antialiasing coverage residue on a shared outline
AntialiasCoverage	13,34 → 23,34	0.08	ΔRGB(-54,-54,-54)	antialiasing coverage residue on a shared outline
Missing	14,32 → 23,32	0.07		candidate lacks paint present in reference (0.07%)
Missing	2,32 → 11,32	0.07		candidate lacks paint present in reference (0.07%)
AntialiasCoverage	13,21 → 22,21	0.07	ΔRGB(54,54,54)	antialiasing coverage residue on a shared outline
AntialiasCoverage	2,34 → 11,34	0.07	ΔRGB(-54,-54,-54)	antialiasing coverage residue on a shared outline
Missing	97,27 → 106,27	0.07		candidate lacks paint present in reference (0.07%)
AntialiasCoverage	3,21 → 11,21	0.06	ΔRGB(54,54,54)	antialiasing coverage residue on a shared outline
AntialiasCoverage	13,26 → 20,26	0.05	ΔRGB(-71,-71,-71)	antialiasing coverage residue on a shared outline
AntialiasCoverage	5,26 → 11,26	0.05	ΔRGB(-71,-71,-71)	antialiasing coverage residue on a shared outline
AntialiasCoverage	68,13 → 69,13	0.02	ΔRGB(71,71,71)	antialiasing coverage residue on a shared outline
AntialiasCoverage	97,27 → 97,27	0.002383	ΔRGB(40,40,40)	antialiasing coverage residue on a shared outline
AntialiasCoverage	106,27 → 106,27	0.002383	ΔRGB(20,20,20)	antialiasing coverage residue on a shared outline
AntialiasCoverage	13,32 → 13,32	0.002383	ΔRGB(20,20,20)	antialiasing coverage residue on a shared outline
AntialiasCoverage	100,35 → 100,35	0.002383	ΔRGB(10,10,10)	antialiasing coverage residue on a shared outline
AntialiasCoverage	102,35 → 102,35	0.002383	ΔRGB(-4,-4,-4)	antialiasing coverage residue on a shared outline
AntialiasCoverage	63,37 → 63,37	0.002383	ΔRGB(-7,-7,-7)	antialiasing coverage residue on a shared outline

source · cases/typography/typography-text-emphasis-filled-dot.html

1<!DOCTYPE html><html><head><meta charset='utf-8'><style>@page{size:264px 120px;margin:0}html{font-family:ParitySans;line-height:1.5}*{margin:0;box-sizing:border-box}body{padding:18px;background:#fff;font-size:28px}.t{text-emphasis:filled dot #d7263d;text-emphasis-position:over right;color:#111}</style></head><body><span class='t'>重要事項</span></body></html>

PASS visually equivalent · no rejecting defect · thresholded evidence 0.20% · raw 0.20% (1386 px) typography-text-emphasis-leading · text-emphasis-leadingPASS via CSS-scale observation: sub-CSS shared-colour coverageAntialiasCoverageΔE 33.0

why: visually accepted coverage phase; raw antialiasing coverage residue on a shared outline

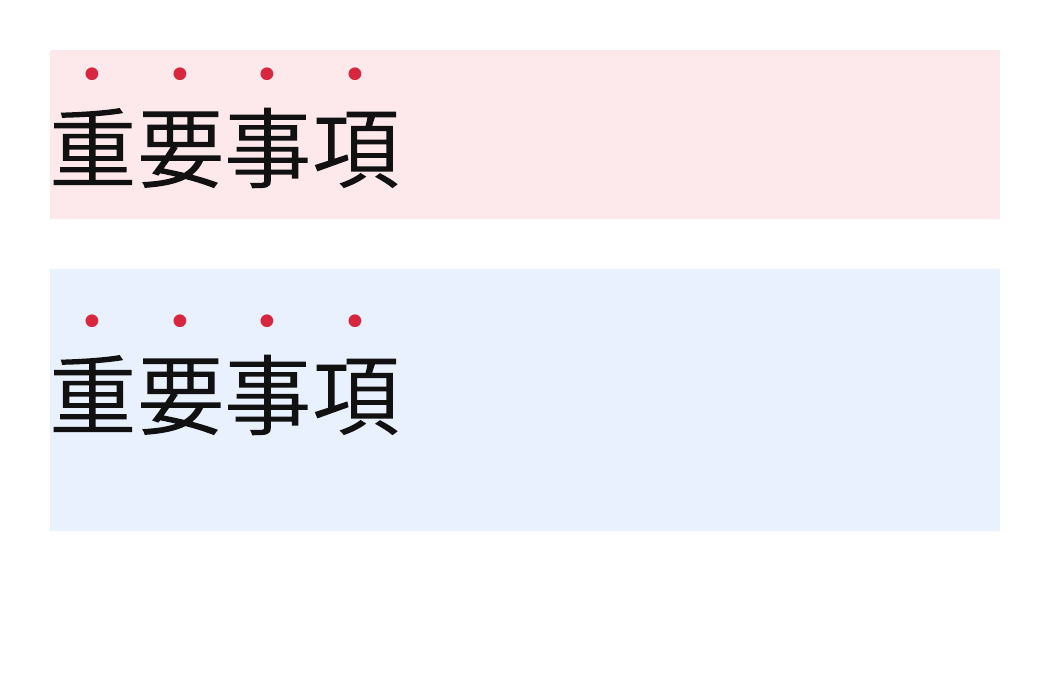

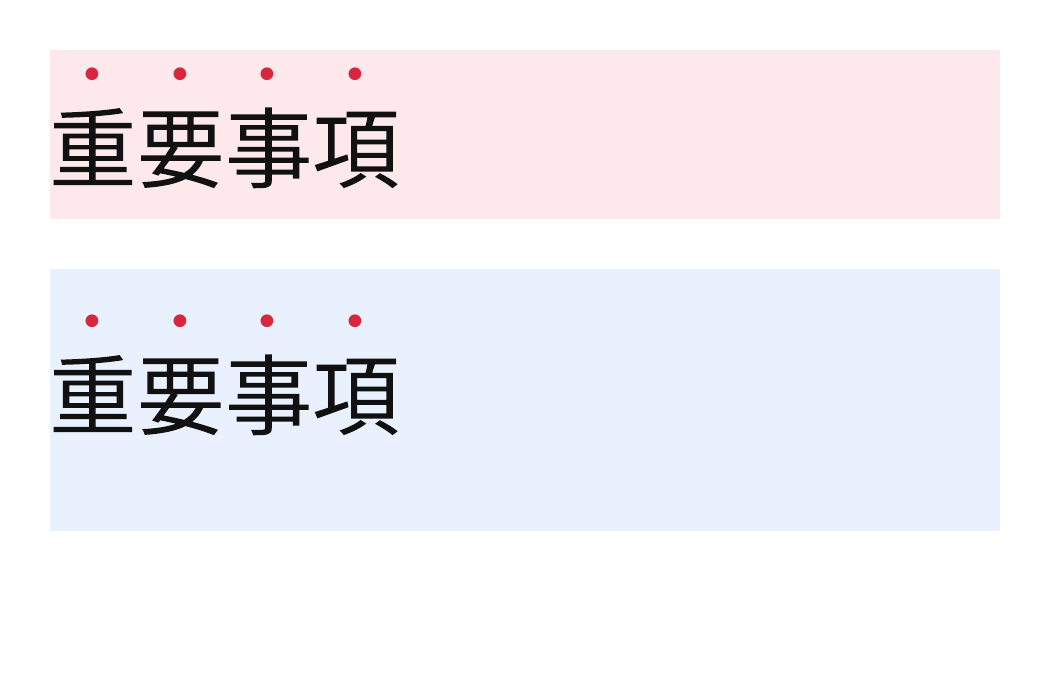

CJK emphasis dots are tested in tight and roomy lines. Catches: a hard-coded baseline ratio may align one font size while ignoring the selected font's annotation metrics and the leading already available above the base text.

regions (78 total; showing 64 representatives)

Complete component census grouped by dominant raster class; representative details are bounded.

Complete dominant-class aggregates

class	regions	pixels	union bbox (CSS px)	largest px	maximum magnitude
ColorErr	78	1386	3,18 → 108,123	107	total 0.3% · largest 0.02%

Representative region details (worst-first)

class	bbox (CSS px)	area%	magnitude	reason
AntialiasCoverage	57,18 → 82,22	0.02	ΔRGB(70,64,65)	antialiasing coverage residue on a shared outline
AntialiasCoverage	57,97 → 82,101	0.02	ΔRGB(64,66,70)	antialiasing coverage residue on a shared outline
AntialiasCoverage	79,24 → 79,29	0.007003	ΔRGB(134,122,124)	antialiasing coverage residue on a shared outline
AntialiasCoverage	79,36 → 80,41	0.007003	ΔRGB(99,90,92)	antialiasing coverage residue on a shared outline
AntialiasCoverage	14,37 → 24,37	0.007003	ΔRGB(30,27,28)	antialiasing coverage residue on a shared outline
AntialiasCoverage	14,39 → 24,39	0.007003	ΔRGB(-54,-49,-50)	antialiasing coverage residue on a shared outline
AntialiasCoverage	79,103 → 79,108	0.007003	ΔRGB(122,127,134)	antialiasing coverage residue on a shared outline
AntialiasCoverage	79,115 → 80,120	0.007003	ΔRGB(90,94,99)	antialiasing coverage residue on a shared outline
AntialiasCoverage	14,116 → 24,116	0.007003	ΔRGB(27,29,30)	antialiasing coverage residue on a shared outline
AntialiasCoverage	14,118 → 24,118	0.007003	ΔRGB(-49,-51,-54)	antialiasing coverage residue on a shared outline
AntialiasCoverage	98,33 → 108,33	0.006565	ΔRGB(30,27,28)	antialiasing coverage residue on a shared outline
AntialiasCoverage	98,112 → 108,112	0.006565	ΔRGB(27,29,30)	antialiasing coverage residue on a shared outline
AntialiasCoverage	14,27 → 23,27	0.006346	ΔRGB(54,49,50)	antialiasing coverage residue on a shared outline
AntialiasCoverage	3,37 → 12,37	0.006346	ΔRGB(30,27,28)	antialiasing coverage residue on a shared outline
AntialiasCoverage	3,39 → 12,39	0.006346	ΔRGB(-54,-49,-50)	antialiasing coverage residue on a shared outline
AntialiasCoverage	14,106 → 23,106	0.006346	ΔRGB(49,51,54)	antialiasing coverage residue on a shared outline
AntialiasCoverage	3,116 → 12,116	0.006346	ΔRGB(27,29,30)	antialiasing coverage residue on a shared outline
AntialiasCoverage	3,118 → 12,118	0.006346	ΔRGB(-49,-51,-54)	antialiasing coverage residue on a shared outline
AntialiasCoverage	4,27 → 12,27	0.005909	ΔRGB(54,49,50)	antialiasing coverage residue on a shared outline
AntialiasCoverage	4,106 → 12,106	0.005909	ΔRGB(49,51,54)	antialiasing coverage residue on a shared outline
AntialiasCoverage	68,40 → 71,44	0.005471	ΔRGB(117,107,109)	antialiasing coverage residue on a shared outline
AntialiasCoverage	68,119 → 71,123	0.005471	ΔRGB(107,111,117)	antialiasing coverage residue on a shared outline
AntialiasCoverage	79,31 → 80,34	0.005252	ΔRGB(84,76,78)	antialiasing coverage residue on a shared outline
AntialiasCoverage	79,110 → 80,113	0.005252	ΔRGB(76,80,84)	antialiasing coverage residue on a shared outline
AntialiasCoverage	14,32 → 21,32	0.004815	ΔRGB(-70,-64,-65)	antialiasing coverage residue on a shared outline
AntialiasCoverage	14,111 → 21,111	0.004815	ΔRGB(-64,-66,-70)	antialiasing coverage residue on a shared outline
AntialiasCoverage	6,32 → 12,32	0.004377	ΔRGB(-70,-64,-65)	antialiasing coverage residue on a shared outline
AntialiasCoverage	6,111 → 12,111	0.004377	ΔRGB(-64,-66,-70)	antialiasing coverage residue on a shared outline
AntialiasCoverage	60,24 → 60,29	0.003501	ΔRGB(-236,-215,-219)	antialiasing coverage residue on a shared outline
AntialiasCoverage	64,42 → 66,44	0.003501	ΔRGB(-42,-38,-39)	antialiasing coverage residue on a shared outline
AntialiasCoverage	60,103 → 60,108	0.003501	ΔRGB(-215,-224,-236)	antialiasing coverage residue on a shared outline
AntialiasCoverage	64,121 → 66,123	0.003501	ΔRGB(-38,-40,-42)	antialiasing coverage residue on a shared outline
AntialiasCoverage	62,25 → 63,27	0.003064	ΔRGB(87,80,81)	antialiasing coverage residue on a shared outline
AntialiasCoverage	77,25 → 77,27	0.003064	ΔRGB(-82,-75,-76)	antialiasing coverage residue on a shared outline
AntialiasCoverage	77,32 → 77,34	0.003064	ΔRGB(-33,-31,-31)	antialiasing coverage residue on a shared outline
AntialiasCoverage	77,36 → 77,38	0.003064	ΔRGB(-33,-31,-31)	antialiasing coverage residue on a shared outline
AntialiasCoverage	62,104 → 63,106	0.003064	ΔRGB(80,82,87)	antialiasing coverage residue on a shared outline
AntialiasCoverage	77,104 → 77,106	0.003064	ΔRGB(-75,-78,-82)	antialiasing coverage residue on a shared outline
AntialiasCoverage	77,111 → 77,113	0.003064	ΔRGB(-31,-31,-33)	antialiasing coverage residue on a shared outline
AntialiasCoverage	77,115 → 77,117	0.003064	ΔRGB(-31,-31,-33)	antialiasing coverage residue on a shared outline
AntialiasCoverage	68,40 → 68,42	0.002845	ΔRGB(-206,-188,-191)	antialiasing coverage residue on a shared outline
AntialiasCoverage	68,119 → 68,121	0.002845	ΔRGB(-188,-195,-206)	antialiasing coverage residue on a shared outline
AntialiasCoverage	60,31 → 60,32	0.002626	ΔRGB(-84,-76,-78)	antialiasing coverage residue on a shared outline
AntialiasCoverage	82,34 → 83,36	0.002626	ΔRGB(82,75,76)	antialiasing coverage residue on a shared outline
AntialiasCoverage	59,38 → 60,40	0.002626	ΔRGB(-84,-76,-78)	antialiasing coverage residue on a shared outline
AntialiasCoverage	60,110 → 60,111	0.002626	ΔRGB(-76,-80,-84)	antialiasing coverage residue on a shared outline
AntialiasCoverage	82,113 → 83,115	0.002626	ΔRGB(75,78,82)	antialiasing coverage residue on a shared outline
AntialiasCoverage	59,117 → 60,119	0.002626	ΔRGB(-76,-80,-84)	antialiasing coverage residue on a shared outline
AntialiasCoverage	77,40 → 77,41	0.002188	ΔRGB(-30,-27,-28)	antialiasing coverage residue on a shared outline
AntialiasCoverage	77,119 → 77,120	0.002188	ΔRGB(-27,-29,-30)	antialiasing coverage residue on a shared outline
AntialiasCoverage	68,25 → 68,27	0.001532	ΔRGB(-236,-215,-219)	antialiasing coverage residue on a shared outline
AntialiasCoverage	71,25 → 71,27	0.001532	ΔRGB(236,215,219)	antialiasing coverage residue on a shared outline
AntialiasCoverage	68,29 → 68,31	0.001532	ΔRGB(-236,-215,-219)	antialiasing coverage residue on a shared outline
AntialiasCoverage	71,29 → 71,31	0.001532	ΔRGB(236,215,219)	antialiasing coverage residue on a shared outline
AntialiasCoverage	68,32 → 68,34	0.001532	ΔRGB(-236,-215,-219)	antialiasing coverage residue on a shared outline
AntialiasCoverage	71,32 → 71,34	0.001532	ΔRGB(236,215,219)	antialiasing coverage residue on a shared outline
AntialiasCoverage	68,36 → 68,38	0.001532	ΔRGB(-236,-215,-219)	antialiasing coverage residue on a shared outline
AntialiasCoverage	71,36 → 71,38	0.001532	ΔRGB(236,215,219)	antialiasing coverage residue on a shared outline
AntialiasCoverage	68,104 → 68,106	0.001532	ΔRGB(-215,-224,-236)	antialiasing coverage residue on a shared outline
AntialiasCoverage	71,104 → 71,106	0.001532	ΔRGB(215,224,236)	antialiasing coverage residue on a shared outline
AntialiasCoverage	68,108 → 68,110	0.001532	ΔRGB(-215,-224,-236)	antialiasing coverage residue on a shared outline
AntialiasCoverage	71,108 → 71,110	0.001532	ΔRGB(215,224,236)	antialiasing coverage residue on a shared outline
AntialiasCoverage	68,111 → 68,113	0.001532	ΔRGB(-215,-224,-236)	antialiasing coverage residue on a shared outline
AntialiasCoverage	71,111 → 71,113	0.001532	ΔRGB(215,224,236)	antialiasing coverage residue on a shared outline

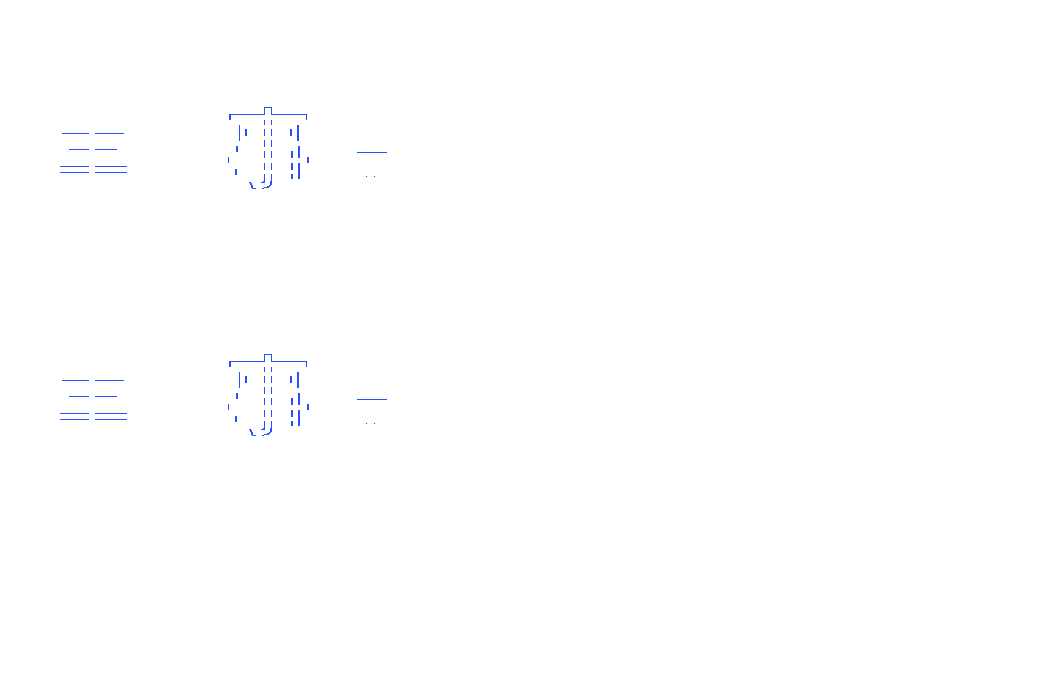

source · cases/typography/typography-text-emphasis-leading.html

1<!doctype html>
2<html>
3<head>
4  <meta charset="utf-8">
5  <style>
6    @page { size: 336px 216px; margin: 0 }
7    * { box-sizing: border-box; margin: 0 }
8    html { font-family: ParitySans }
9    body { padding: 16px; color: #111; font-size: 28px }
10    .line { width: 304px }
11    .tight { line-height: 1.5; background: #fde8ec }
12    .roomy { margin-top: 16px; line-height: 3; background: #e8f1fd }
13    .em { text-emphasis: filled dot #d7263d; text-emphasis-position: over right }
14  </style>
15</head>
16<body>
17  <p class="line tight"><span class="em">重要事項</span></p>
18  <p class="line roomy"><span class="em">重要事項</span></p>
19</body>
20</html>

PASS visually equivalent · no rejecting defect · thresholded evidence 0.21% · raw 0.21% (1472 px) typography-text-emphasis-under · text-emphasis-underPASS via CSS-scale observation: sub-CSS shared-colour coverageAntialiasCoverageΔE 31.8

why: visually accepted coverage phase; raw antialiasing coverage residue on a shared outline

`under right` must place marks below the base and reserve the ruby annotation spacing on the corresponding line-box side.

regions (56 total; showing 56 representatives)

Complete component census grouped by dominant raster class; representative details are bounded.

Complete dominant-class aggregates

class	regions	pixels	union bbox (CSS px)	largest px	maximum magnitude
ColorErr	56	1472	3,6 → 108,101	306	total 0.4% · largest 0.09%

Representative region details (worst-first)

class	bbox (CSS px)	area%	magnitude	reason
AntialiasCoverage	56,81 → 67,101	0.09	ΔRGB(4,4,4)	antialiasing coverage residue on a shared outline
AntialiasCoverage	57,75 → 65,83	0.04	ΔRGB(-4,-4,-4)	antialiasing coverage residue on a shared outline
AntialiasCoverage	57,6 → 82,10	0.03	ΔRGB(64,66,70)	antialiasing coverage residue on a shared outline
AntialiasCoverage	76,87 → 78,101	0.03	ΔRGB(84,76,78)	antialiasing coverage residue on a shared outline
AntialiasCoverage	76,87 → 76,99	0.02	ΔRGB(-87,-80,-81)	antialiasing coverage residue on a shared outline
AntialiasCoverage	68,77 → 82,79	0.02	ΔRGB(54,49,50)	antialiasing coverage residue on a shared outline
AntialiasCoverage	39,86 → 54,86	0.01	ΔRGB(54,49,50)	antialiasing coverage residue on a shared outline
AntialiasCoverage	79,12 → 79,17	0.009707	ΔRGB(122,127,134)	antialiasing coverage residue on a shared outline
AntialiasCoverage	79,24 → 80,29	0.009707	ΔRGB(90,94,99)	antialiasing coverage residue on a shared outline
AntialiasCoverage	14,25 → 24,25	0.009707	ΔRGB(27,29,30)	antialiasing coverage residue on a shared outline
AntialiasCoverage	14,27 → 24,27	0.009707	ΔRGB(-49,-51,-54)	antialiasing coverage residue on a shared outline
AntialiasCoverage	98,20 → 108,20	0.009101	ΔRGB(27,29,30)	antialiasing coverage residue on a shared outline
AntialiasCoverage	14,14 → 23,14	0.008797	ΔRGB(49,51,54)	antialiasing coverage residue on a shared outline
AntialiasCoverage	3,25 → 12,25	0.008797	ΔRGB(27,29,30)	antialiasing coverage residue on a shared outline
AntialiasCoverage	3,27 → 12,27	0.008797	ΔRGB(-49,-51,-54)	antialiasing coverage residue on a shared outline
AntialiasCoverage	4,14 → 12,14	0.008191	ΔRGB(49,51,54)	antialiasing coverage residue on a shared outline
AntialiasCoverage	68,28 → 71,32	0.007584	ΔRGB(107,111,117)	antialiasing coverage residue on a shared outline
AntialiasCoverage	79,19 → 80,22	0.007280	ΔRGB(76,80,84)	antialiasing coverage residue on a shared outline
AntialiasCoverage	14,20 → 21,20	0.006674	ΔRGB(-64,-66,-70)	antialiasing coverage residue on a shared outline
AntialiasCoverage	6,20 → 12,20	0.006067	ΔRGB(-64,-66,-70)	antialiasing coverage residue on a shared outline
AntialiasCoverage	60,12 → 60,17	0.004854	ΔRGB(-215,-224,-236)	antialiasing coverage residue on a shared outline
AntialiasCoverage	64,30 → 66,32	0.004854	ΔRGB(-38,-40,-42)	antialiasing coverage residue on a shared outline
AntialiasCoverage	82,84 → 83,87	0.004854	ΔRGB(82,75,76)	antialiasing coverage residue on a shared outline
AntialiasCoverage	71,99 → 72,101	0.004550	ΔRGB(-112,-102,-104)	antialiasing coverage residue on a shared outline
AntialiasCoverage	62,13 → 63,15	0.004247	ΔRGB(80,82,87)	antialiasing coverage residue on a shared outline
AntialiasCoverage	77,13 → 77,15	0.004247	ΔRGB(-75,-78,-82)	antialiasing coverage residue on a shared outline
AntialiasCoverage	77,20 → 77,22	0.004247	ΔRGB(-31,-31,-33)	antialiasing coverage residue on a shared outline
AntialiasCoverage	77,24 → 77,26	0.004247	ΔRGB(-31,-31,-33)	antialiasing coverage residue on a shared outline
AntialiasCoverage	68,28 → 68,30	0.003944	ΔRGB(-188,-195,-206)	antialiasing coverage residue on a shared outline
AntialiasCoverage	60,19 → 60,20	0.003640	ΔRGB(-76,-80,-84)	antialiasing coverage residue on a shared outline
AntialiasCoverage	82,22 → 83,24	0.003640	ΔRGB(75,78,82)	antialiasing coverage residue on a shared outline
AntialiasCoverage	59,26 → 60,28	0.003640	ΔRGB(-76,-80,-84)	antialiasing coverage residue on a shared outline
AntialiasCoverage	77,28 → 77,29	0.003034	ΔRGB(-27,-29,-30)	antialiasing coverage residue on a shared outline
AntialiasCoverage	67,84 → 67,87	0.002427	ΔRGB(-236,-215,-219)	antialiasing coverage residue on a shared outline
AntialiasCoverage	68,13 → 68,15	0.002123	ΔRGB(-215,-224,-236)	antialiasing coverage residue on a shared outline
AntialiasCoverage	71,13 → 71,15	0.002123	ΔRGB(215,224,236)	antialiasing coverage residue on a shared outline
AntialiasCoverage	68,17 → 68,19	0.002123	ΔRGB(-215,-224,-236)	antialiasing coverage residue on a shared outline
AntialiasCoverage	71,17 → 71,19	0.002123	ΔRGB(215,224,236)	antialiasing coverage residue on a shared outline
AntialiasCoverage	68,20 → 68,22	0.002123	ΔRGB(-215,-224,-236)	antialiasing coverage residue on a shared outline
AntialiasCoverage	71,20 → 71,22	0.002123	ΔRGB(215,224,236)	antialiasing coverage residue on a shared outline
AntialiasCoverage	68,24 → 68,26	0.002123	ΔRGB(-215,-224,-236)	antialiasing coverage residue on a shared outline
AntialiasCoverage	71,24 → 71,26	0.002123	ΔRGB(215,224,236)	antialiasing coverage residue on a shared outline
AntialiasCoverage	39,91 → 41,91	0.002123	ΔRGB(-70,-64,-65)	antialiasing coverage residue on a shared outline
AntialiasCoverage	52,91 → 54,91	0.002123	ΔRGB(-70,-64,-65)	antialiasing coverage residue on a shared outline
AntialiasCoverage	57,22 → 57,24	0.001820	ΔRGB(-215,-224,-236)	antialiasing coverage residue on a shared outline
AntialiasCoverage	33,101 → 35,101	0.001820	ΔRGB(30,27,28)	antialiasing coverage residue on a shared outline
AntialiasCoverage	68,10 → 68,12	0.001517	ΔRGB(-215,-224,-236)	antialiasing coverage residue on a shared outline
AntialiasCoverage	71,10 → 71,12	0.001517	ΔRGB(215,224,236)	antialiasing coverage residue on a shared outline
AntialiasCoverage	68,32 → 68,32	0.000607	ΔRGB(17,19,19)	antialiasing coverage residue on a shared outline
AntialiasCoverage	75,101 → 76,101	0.000607	ΔRGB(51,47,47)	antialiasing coverage residue on a shared outline
AntialiasCoverage	101,28 → 101,28	0.000303	ΔRGB(9,10,10)	antialiasing coverage residue on a shared outline
AntialiasCoverage	104,28 → 104,28	0.000303	ΔRGB(-4,-4,-4)	antialiasing coverage residue on a shared outline
AntialiasCoverage	6,75 → 6,75	0.000303	ΔRGB(16,16,15)	antialiasing coverage residue on a shared outline
AntialiasCoverage	15,75 → 15,75	0.000303	ΔRGB(14,13,13)	antialiasing coverage residue on a shared outline
AntialiasCoverage	33,75 → 33,75	0.000303	ΔRGB(16,16,15)	antialiasing coverage residue on a shared outline
AntialiasCoverage	76,99 → 76,99	0.000303	ΔRGB(-82,-75,-76)	antialiasing coverage residue on a shared outline

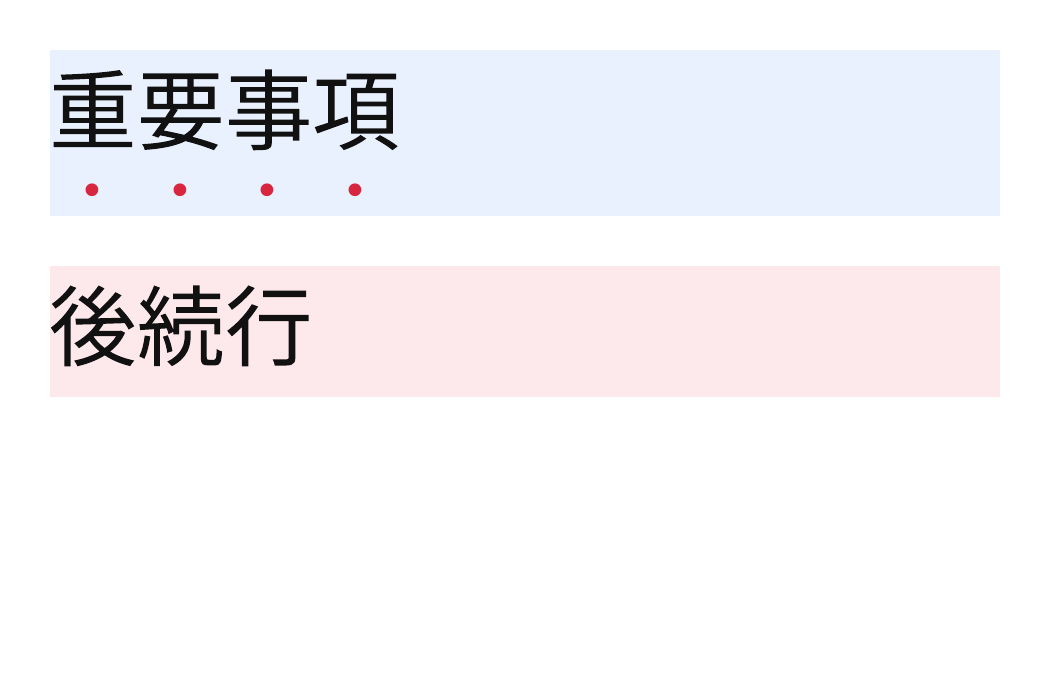

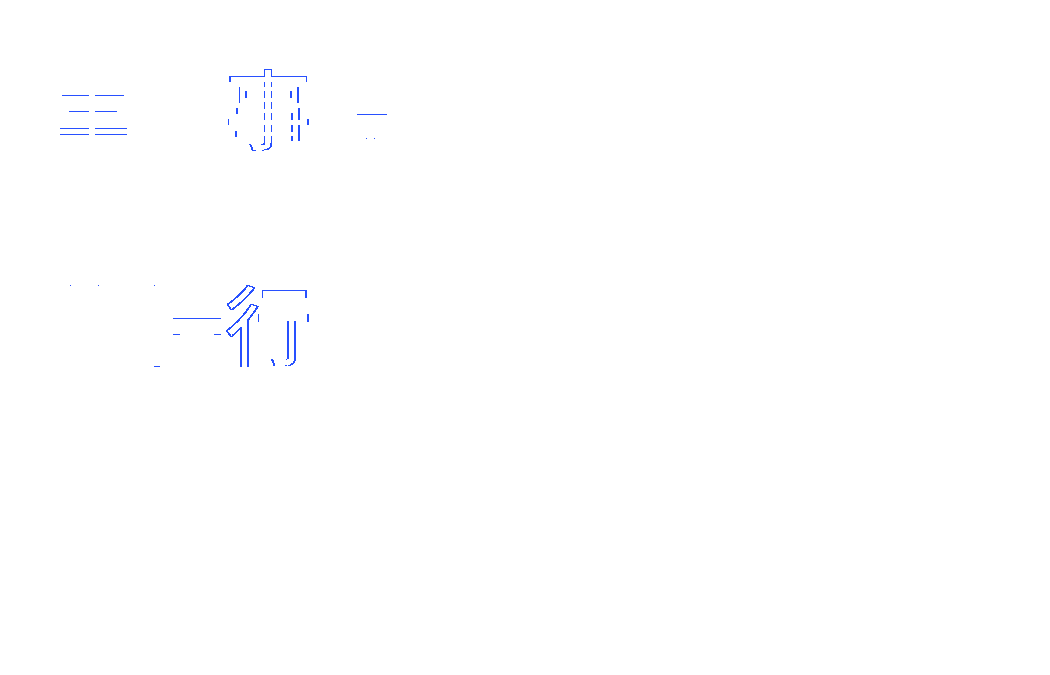

source · cases/typography/typography-text-emphasis-under.html

1<!doctype html>
2<html lang="en">
3<head>
4<meta charset="utf-8">
5<style>
6  @page { size: 336px 216px; margin: 0; }
7  * { box-sizing: border-box; margin: 0; }
8  html { font-family: ParitySans, sans-serif; }
9  body { padding: 16px; color: #111; font-size: 28px; }
10  .under { line-height: 1.5; background: #e8f1fd; }
11  .following { margin-top: 16px; line-height: 1.5; background: #fde8ec; }
12  .em {
13    color: #111;
14    text-emphasis: filled dot #d7263d;
15    text-emphasis-position: under right;
16  }
17</style>
18</head>
19<body>
20<p class="under"><span class="em">重要事項</span></p>
21<p class="following">後続行</p>
22</body>
23</html>

PASS visually equivalent · no rejecting defect · thresholded evidence 0.12% · raw 0.12% (779 px) typography-text-emphasis-whitespace · text-emphasis-whitespacePASS via CSS-scale observation: sub-CSS shared-colour coverageAntialiasCoverageΔE 30.6

why: visually accepted coverage phase; raw antialiasing coverage residue on a shared outline

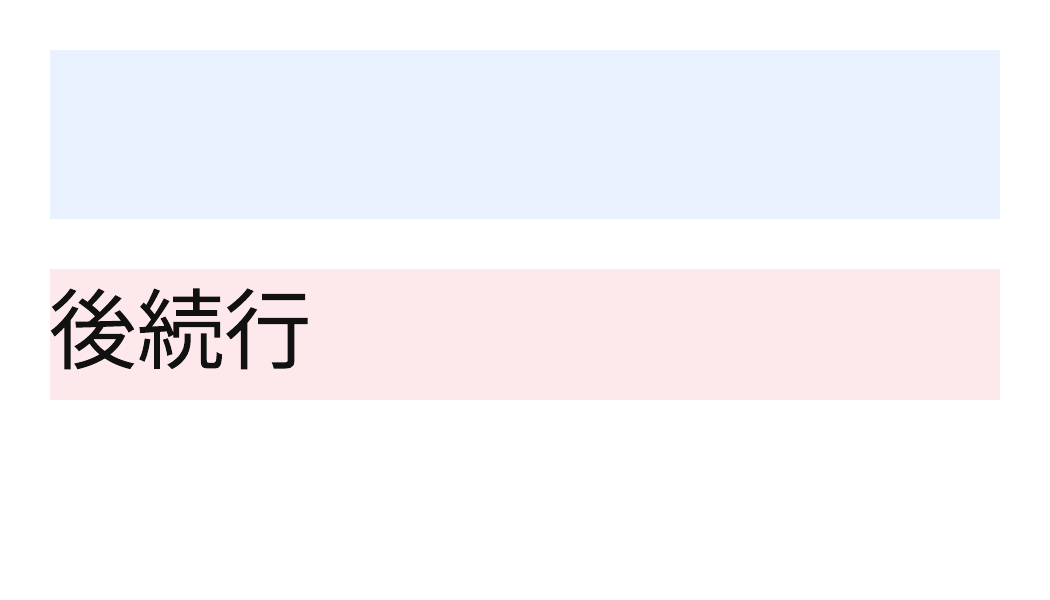

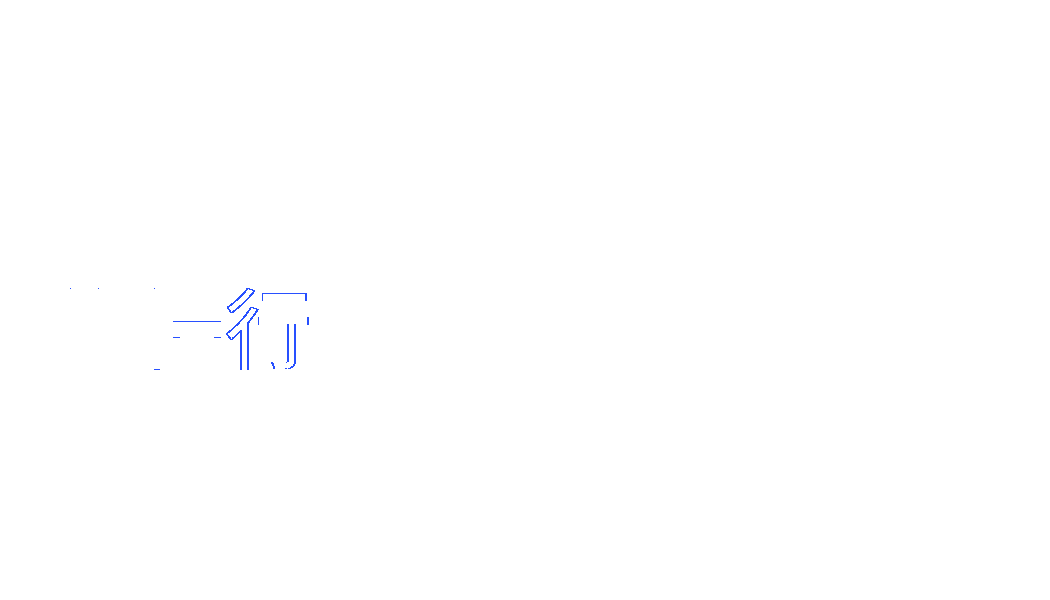

An emphasized preserved space paints no mark but retains its ruby annotation height in following flow.

regions (17 total; showing 17 representatives)

Complete component census grouped by dominant raster class; representative details are bounded.

Complete dominant-class aggregates

class	regions	pixels	union bbox (CSS px)	largest px	maximum magnitude
ColorErr	17	779	6,76 → 83,102	306	total 0.2% · largest 0.09%

Representative region details (worst-first)

class	bbox (CSS px)	area%	magnitude	reason
AntialiasCoverage	56,82 → 67,102	0.09	ΔRGB(4,4,4)	antialiasing coverage residue on a shared outline
AntialiasCoverage	57,76 → 65,84	0.04	ΔRGB(-4,-4,-4)	antialiasing coverage residue on a shared outline
AntialiasCoverage	76,88 → 78,102	0.03	ΔRGB(84,76,78)	antialiasing coverage residue on a shared outline
AntialiasCoverage	76,88 → 76,100	0.02	ΔRGB(-87,-80,-81)	antialiasing coverage residue on a shared outline
AntialiasCoverage	68,78 → 82,80	0.02	ΔRGB(54,49,50)	antialiasing coverage residue on a shared outline
AntialiasCoverage	39,87 → 54,87	0.01	ΔRGB(54,49,50)	antialiasing coverage residue on a shared outline
AntialiasCoverage	82,85 → 83,88	0.004812	ΔRGB(82,75,76)	antialiasing coverage residue on a shared outline
AntialiasCoverage	71,100 → 72,102	0.004511	ΔRGB(-112,-102,-104)	antialiasing coverage residue on a shared outline
AntialiasCoverage	67,85 → 67,88	0.002406	ΔRGB(-236,-215,-219)	antialiasing coverage residue on a shared outline
AntialiasCoverage	39,92 → 41,92	0.002105	ΔRGB(-70,-64,-65)	antialiasing coverage residue on a shared outline
AntialiasCoverage	52,92 → 54,92	0.002105	ΔRGB(-70,-64,-65)	antialiasing coverage residue on a shared outline
AntialiasCoverage	33,102 → 35,102	0.001805	ΔRGB(30,27,28)	antialiasing coverage residue on a shared outline
AntialiasCoverage	75,102 → 76,102	0.000602	ΔRGB(51,47,47)	antialiasing coverage residue on a shared outline
AntialiasCoverage	6,76 → 6,76	0.000301	ΔRGB(16,16,15)	antialiasing coverage residue on a shared outline
AntialiasCoverage	15,76 → 15,76	0.000301	ΔRGB(14,13,13)	antialiasing coverage residue on a shared outline
AntialiasCoverage	33,76 → 33,76	0.000301	ΔRGB(16,16,15)	antialiasing coverage residue on a shared outline
AntialiasCoverage	76,100 → 76,100	0.000301	ΔRGB(-82,-75,-76)	antialiasing coverage residue on a shared outline

source · cases/typography/typography-text-emphasis-whitespace.html

1<!doctype html>
2<html lang="en">
3<head>
4<meta charset="utf-8">
5<style>
6  @page { size: 336px 192px; margin: 0; }
7  * { box-sizing: border-box; margin: 0; }
8  html { font-family: ParitySans, sans-serif; }
9  body { padding: 16px; color: #111; font-size: 28px; }
10  .space { line-height: 1.5; white-space: pre; background: #e8f1fd; }
11  .following { margin-top: 16px; line-height: 1.5; background: #fde8ec; }
12  .em { text-emphasis: filled dot #d7263d; }
13</style>
14</head>
15<body>
16<p class="space"><span class="em"> </span></p>
17<p class="following">後続行</p>
18</body>
19</html>

PASS visually equivalent · no rejecting defect · thresholded evidence 0.39% · raw 0.40% (1687 px) typography-vertical-align-sup · supPASS via CSS-scale observation: sub-CSS shared-colour coverageAntialiasCoverageΔE 31.0

why: visually accepted coverage phase; raw antialiasing coverage residue on a shared outline

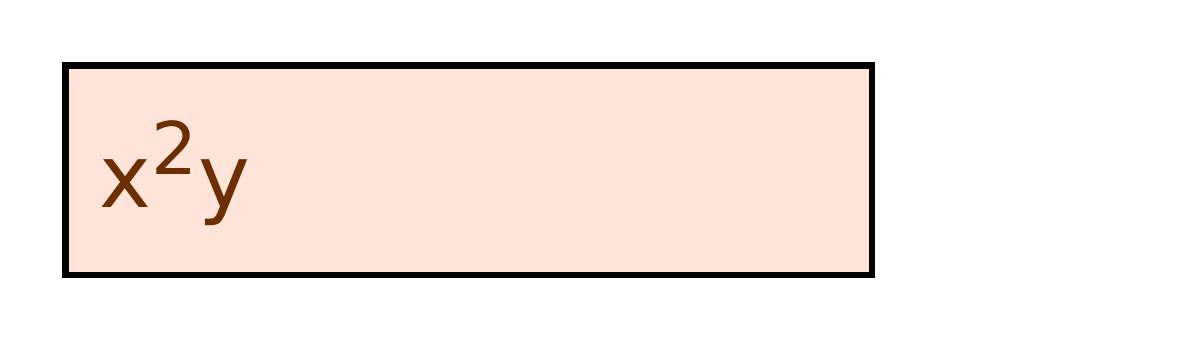

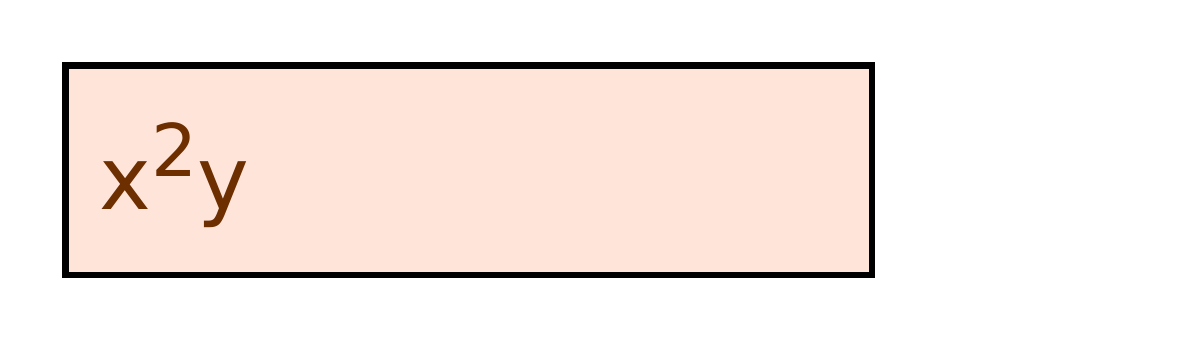

Superscript element (x squared) raised above the baseline with reduced font-size.

regions (5 total; showing 5 representatives)

Complete component census grouped by dominant raster class; representative details are bounded.

Complete dominant-class aggregates

class	regions	pixels	union bbox (CSS px)	largest px	maximum magnitude
ColorErr	5	1687	12,19 → 59,53	581	total 1.0% · largest 0.3%

Representative region details (worst-first)

class	bbox (CSS px)	area%	magnitude	reason
AntialiasCoverage	12,31 → 27,47	0.3	ΔRGB(2,2,2)	antialiasing coverage residue on a shared outline
AntialiasCoverage	44,31 → 59,53	0.3	ΔRGB(1,1,1)	antialiasing coverage residue on a shared outline
AntialiasCoverage	30,19 → 41,34	0.2	ΔRGB(23,28,34)	antialiasing coverage residue on a shared outline
AntialiasCoverage	30,20 → 38,34	0.1	ΔRGB(1,1,1)	antialiasing coverage residue on a shared outline
AntialiasCoverage	30,36 → 41,36	0.04	ΔRGB(-146,-183,-217)	antialiasing coverage residue on a shared outline

source · cases/typography/typography-vertical-align-sup.html

1<!DOCTYPE html>
2<html lang="en">
3<head>
4<meta charset="utf-8">
5<title>vertical-align sup</title>
6<style>
7  @page { size: 384px 112px; margin: 0; }
8  html { font-family: ParitySans; line-height: 1.5; }
9  * { margin: 0; box-sizing: border-box; }
10  html, body { background: #ffffff; }
11  .region {
12    width: 260px;
13    margin: 20px;
14    padding: 10px;
15    border: 2px solid #000000;
16    background: #ffe5d9;
17  }
18  .t {
19    font-family: ParitySans;
20    font-size: 28px;
21    line-height: 1.4;
22    color: #6d2e00;
23  }
24</style>
25</head>
26<body>
27  <div class="region">
28    <div class="t">x<sup>2</sup>y</div>
29  </div>
30</body>
31</html>

PASS visually equivalent · no rejecting defect · thresholded evidence 0.09% · raw 0.09% (379 px) typography-vertical-align-sub · subPASS via CSS-scale observation: sub-CSS shared-colour coverageAntialiasCoverageΔE 34.7

why: visually accepted coverage phase; raw antialiasing coverage residue on a shared outline

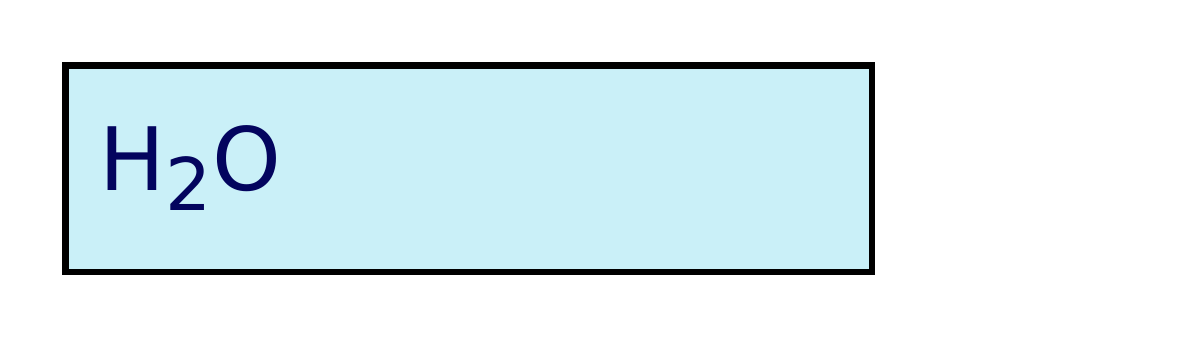

Subscript element (H2O) lowered below the baseline with reduced font-size.

regions (3 total; showing 3 representatives)

Complete component census grouped by dominant raster class; representative details are bounded.

Complete dominant-class aggregates

class	regions	pixels	union bbox (CSS px)	largest px	maximum magnitude
ColorErr	3	379	35,30 → 45,47	207	total 0.2% · largest 0.1%

Representative region details (worst-first)

class	bbox (CSS px)	area%	magnitude	reason
AntialiasCoverage	35,30 → 45,45	0.1	ΔRGB(-7,-8,-5)	antialiasing coverage residue on a shared outline
AntialiasCoverage	35,32 → 43,45	0.08	ΔRGB(-1,-1,-1)	antialiasing coverage residue on a shared outline
AntialiasCoverage	35,47 → 45,47	0.02	ΔRGB(199,236,154)	antialiasing coverage residue on a shared outline

source · cases/typography/typography-vertical-align-sub.html

1<!DOCTYPE html>
2<html lang="en">
3<head>
4<meta charset="utf-8">
5<title>vertical-align sub</title>
6<style>
7  @page { size: 384px 112px; margin: 0; }
8  html { font-family: ParitySans; line-height: 1.5; }
9  * { margin: 0; box-sizing: border-box; }
10  html, body { background: #ffffff; }
11  .region {
12    width: 260px;
13    margin: 20px;
14    padding: 10px;
15    border: 2px solid #000000;
16    background: #caf0f8;
17  }
18  .t {
19    font-family: ParitySans;
20    font-size: 28px;
21    line-height: 1.4;
22    color: #03045e;
23  }
24</style>
25</head>
26<body>
27  <div class="region">
28    <div class="t">H<sub>2</sub>O</div>
29  </div>
30</body>
31</html>

typography — 100.00% verified visual parity

font-family — 100.00% verified visual parity PASS 3 · FAIL 0 · REFERENCE-DISPUTED 0all categories ↑

font-size — 100.00% verified visual parity PASS 5 · FAIL 0 · REFERENCE-DISPUTED 0all categories ↑

font-style — 100.00% verified visual parity PASS 1 · FAIL 0 · REFERENCE-DISPUTED 0all categories ↑

font-weight — 100.00% verified visual parity PASS 2 · FAIL 0 · REFERENCE-DISPUTED 0all categories ↑

heading-default-size — 100.00% verified visual parity PASS 1 · FAIL 0 · REFERENCE-DISPUTED 0all categories ↑

Complete dominant-class aggregates

Representative region details (worst-first)

initial-letter:2 — 100.00% verified visual parity PASS 1 · FAIL 0 · REFERENCE-DISPUTED 0all categories ↑

Complete dominant-class aggregates

Representative region details (worst-first)

line-height — 100.00% verified visual parity PASS 3 · FAIL 0 · REFERENCE-DISPUTED 0all categories ↑

line-height:<length em> inheritance — 100.00% verified visual parity PASS 1 · FAIL 0 · REFERENCE-DISPUTED 0all categories ↑

mixed inline font-size line box metrics — 100.00% verified visual parity PASS 1 · FAIL 0 · REFERENCE-DISPUTED 0all categories ↑

Complete dominant-class aggregates

Representative region details (worst-first)

text-emphasis filled dot — 100.00% verified visual parity PASS 1 · FAIL 0 · REFERENCE-DISPUTED 0all categories ↑

Complete dominant-class aggregates

Representative region details (worst-first)

text-emphasis line-height interaction — 100.00% verified visual parity PASS 1 · FAIL 0 · REFERENCE-DISPUTED 0all categories ↑

Complete dominant-class aggregates

Representative region details (worst-first)

text-emphasis position — 100.00% verified visual parity PASS 1 · FAIL 0 · REFERENCE-DISPUTED 0all categories ↑

Complete dominant-class aggregates

Representative region details (worst-first)

text-emphasis skip — 100.00% verified visual parity PASS 1 · FAIL 0 · REFERENCE-DISPUTED 0all categories ↑

Complete dominant-class aggregates

Representative region details (worst-first)

vertical-align — 100.00% verified visual parity PASS 2 · FAIL 0 · REFERENCE-DISPUTED 0all categories ↑

Complete dominant-class aggregates

Representative region details (worst-first)

Complete dominant-class aggregates

Representative region details (worst-first)
